Updated Simple ESPSomfy RTS device (markdown)

rstrouse 2023-02-15 12:58:17 -08:00
parent 451747ae07
commit c30e43f492
1 changed files with 1 additions and 1 deletions
Download patch file Download diff file Expand all files Collapse all files

2
Simple-ESPSomfy-RTS-device.md

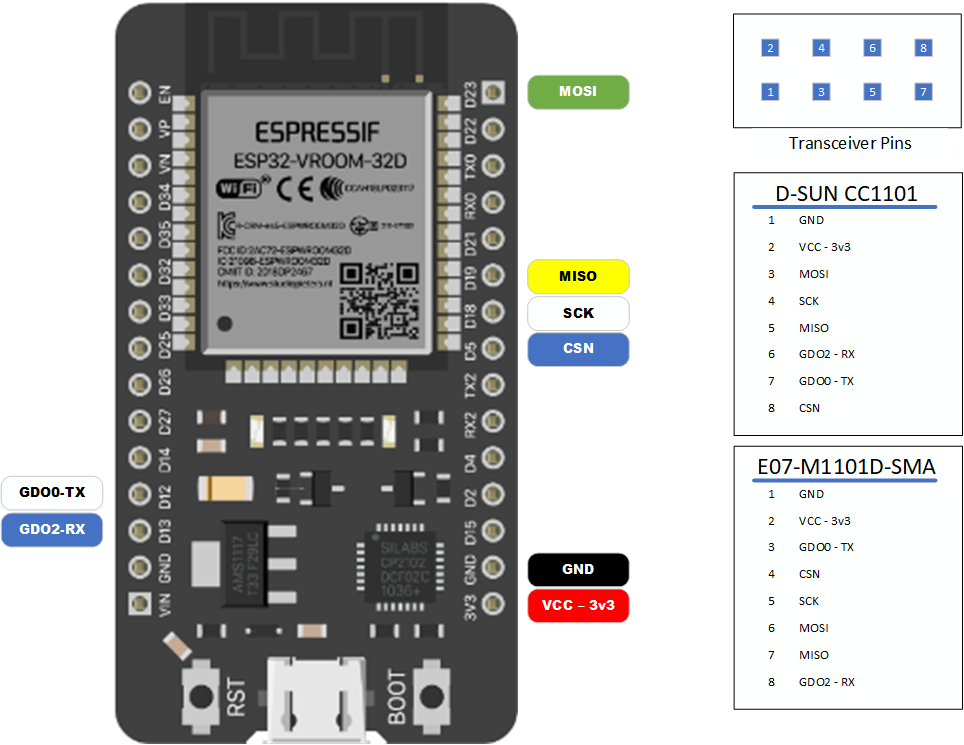

@ -48,7 +48,7 @@ If you must change the pin assignments then feel free to do so. You can assign
Here is a picture for those of you who need to see it to believe it.
![image](https://user-images.githubusercontent.com/47839015/213935879-08ba55e9-ebe9-4b53-be12-baccf310eeb4.png)
![image](https://user-images.githubusercontent.com/47839015/219157617-f7d8fca2-0191-4b66-b4cb-a2f507c3a42d.png)
# More Polished Version
If you are like me and cannot bear to have something that looks all cobble up when you want to show it off you can create a more polished version using a breadboard, a couple of headers, and some kynar wire soldered to the back of the board. Below is a picture of the finished project. I built 3 of these out of all the radios that I bought.
