# Set up the Transceiver

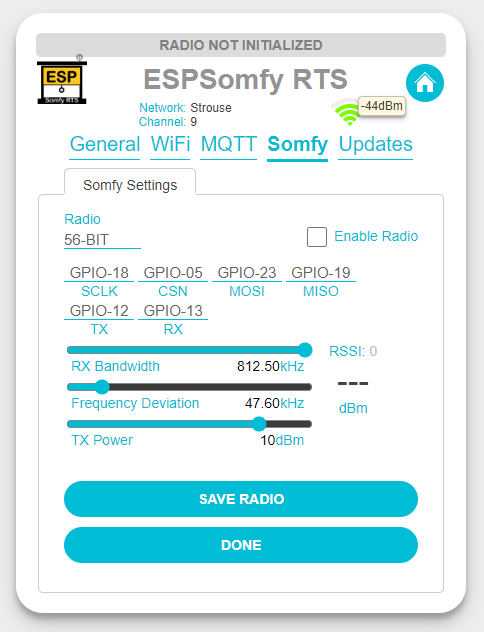

Initially, ESPSomfyRTS will start with the transceiver disabled. You will need to ensure the pin mappings match the wiring that you used when initially building your device. To set up and configure your transceiver navigate to the transceiver configuration screen. From the gears menu click the `Somfy` tab then click the `Configure Transceiver` button. A screen will appear with the transceiver options.
![image](https://user-images.githubusercontent.com/47839015/224563489-a7dfa5c2-293a-4e39-be35-561c92080771.png)
![image](https://user-images.githubusercontent.com/47839015/226149911-0761bbe9-e621-4365-aa7d-4108a5e362af.png)

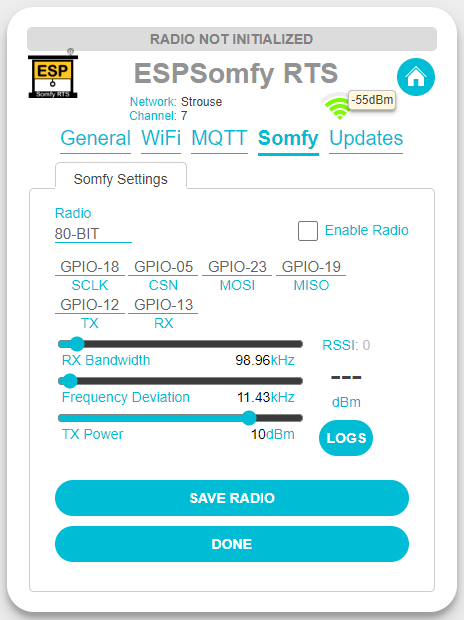

First you need to select the radio type. If you do not know what type of motor radio you have it is likely a 56-BIT motor. Leave it here for now. Next review each of the pin selectors and set them to the proper pin assignment for your wiring. The screen will default to the default wiring from the hardware build but please double check to ensure these values match the way you wired the transceiver. If you used a wired Ethernet board these will most definitely not be correct.
@ -40,7 +40,6 @@ You can view all incoming frames from your remotes with the `Logs` button. This
![image](https://user-images.githubusercontent.com/47839015/226149443-0a390e44-77d2-4d78-8b0d-bbde51e2518b.png)
## Tune your Transceiver
The default tuning parameters are most likely not the best settings for your transceiver. To start, first select the RX Bandwidth to 96.96kHz and the Frequency Deviation to 11.43kHz. You can use the arrows on your keyboard to fine tune the value. Then press the `Save Radio` button. Next, using a remote from about 3 feet away press one of the buttons. ESPSomfy RTS should pick up the signal and provide an RSSI (Received Signal Strength Indicator) value. This number is a measurement of how strong the signal is. The closer this value gets to 0 indicates a stronger received signal.
