ESPSomfy-RTS

A controller for Somfy RTS blinds and shades that supports up to 32 individual shades over 433.42MHz RTS protocol.

Most of my home is automated and one of the more annoying aspects are the three very expensive patio roller shades that still didn't have any type of automation attached to them. So I went searching for libraries that could automate my shades. I didn't just want to move them I wanted to interact with them and manage their position. And because that Telis torpedo has been with me for so long I still wanted to be able to use that as well.

The research led me to several projects that looked like they would do what I want. Most of them however, could send commands using a CC1101 radio attached to an ESP32 but I really wanted to be able to capture information from any external remotes as well. In the end I did not find what I wanted so this repository was born. ESPSomfy RTS is capable of not only controlling the shades but it can also manage the current position even when an old school remote is used to move the shades.

This software uses a couple of readily available hardware components. These include an ESP32 module and a CC1101 Transceiver module. The CC1101 is connected via SPI to the ESP32 and controlled using SmartRC-CC1101-Driver library. All in at the start of 2023 the total cost for me was about $12us for the final components.

Getting Started

Originally I bought a cc1101 transceiver with a spring type antenna and could not figure out why it would not consistently receive commands from my remotes. I then went about purchasing several other transceiver modules thinking that all my code is always perfect. This hard-headedness led me to the conclusion that the timing algorithm I created to read the radio signal was not quite ready. Since I ordered every type of CC1101 transceiver I could get my hands on, I can report that any of the CC1101 transceivers work very well. I must have had an extra thumb or two when I built the orginal timing since it was dropping part of the hardware sync. In the end, all of the cheap cc1101 transceivers I bought had a range over 300 feet and through a couple of walls. I finally just stopped walking.

Your first step is to connect your transceiver to your ESP32. I did this with the use of some female to female dupont connectors for now but will be coming up with a cleaner setup and project enclosure. Next you will want to install the firmware on your ESP32 and configure the radio to match your hardware connections.

Required Hardware

• 1 - ESP32 Module
• 1 - CC1101 Transceiver Module
• 8 - Dupont female/female connectors

Assembling the Hardware

You will need an ESP32 module. I used an ESP32S-WROOM-32 development board for my project. The included binary is compiled using this board. You will also need a CC1101 transceiver module. Like I explained earlier I bought several of these and they all work great. I have the blue ones with 10 pins, green ones with 8 pins, and even blue ones with 8 pins. The 10 pin versions simply have the VCC and ground pins duplicated.

The reason I have so many isn't so I could give you advice on every model on the market, it was because I wrote a crappy algorithm originally that I thought was perfect. They all apear to perform about the same so get a transceiver module with good availabilty from a supplier that can get it to you before your patience wears out.

The hardest part of the inital connection is determining which pins are which on the transceiver. Sadly the first module (green 8-pin) I bought only had the pins labeled with a number. As it turns out the mapping goes like this if you bought one of these boards.

Pin	Description	ESP Pin
1	GND	GND
2	VCC	3v3
3	GDO0 - This is the RX Pin	GPIO 13
4	CSN	GPIO 5
5	SCK	GPIO 18
6	MOSI	GPIO 23
7	MISO	GPIO 19
8	GDO2 - This is the TX pin	GPIO 12

This is how I mapped mine using the V-SPI interface of the ESP32 and two innocuous pins for RX/TX. Initially I used the onboard LED pin for RX to see when data was being sent but I think that was causing interference. If you just want this to work use the pin mapping above. The other boards are much better labeled so match up the descriptions to the pin header and you will be golden.

If you must change the pin assignments then feel free to do so. You can assign them to anything you like since the software configuration will allow you to change these when you set up the radio. But beware I spent a whole lot of time reading about ESP32 pins only to realize that I got interference every time I touched the board. For cryin out loud I picked a touch pin for GDO0.

Installing the Software

I developed this using the painfully awful Arduino IDE v1.8. I originally installed v2.0 then found out you cannot upload the file data to it so use v1.8 and save yourself several hours of searching through forums for functions that are not supported even several years after its release. If you are using VS Code then you are on your own. The good news is that you only need this during the initial install and all follow on work for the module is user friendly.

First compile and upload the firmware to the ESP32. Then upload the data using the Sketch Data upload tool. You will be happy to know that once the initial install is done you don't have to go through all these hoops to update the firmware or the LittleFS file system if you are using an ESP32S-WROOM-32 module. I created a utility that is part of the software to do this task but it is a chicken/egg thing where you need the hen on the ESP32 to hatch the egg. You can install the future firmware and the applicaton files remotely. So you can put the ESPSomfy RTS module into a remote location.

If you are unfamiliar with uploading sketches this is an opportunity to learn but be aware like all things Arduino this can be infuriating. If you are using the Arduino IDE v1.8 you will find the tool here. Sketch Data Upload Tool

If you choose to use one of the flasher utilities out there (I haven't messed with them), I have included the binaries for the firmware and the file system in the releases. I don't know how well these work but there are a bunch of them out there. Expressif even makes their own which when I first looked at it, was clearly made by Expressif in that it has a bunch of options with zero explanation as to what they do. If you use a flasher and have success with it please comment in the discussions. Perhaps with a little clarity we can forgo the need to install Arduino IDE v1.8 (not 2.0). Maybe I can write a static page into the server that will allow the file system to be uploaded separately in the future.

Configuring the Software

From here on out everything is easy. You simply navigate the user interface to set up your controller.

Initial WiFi Connection

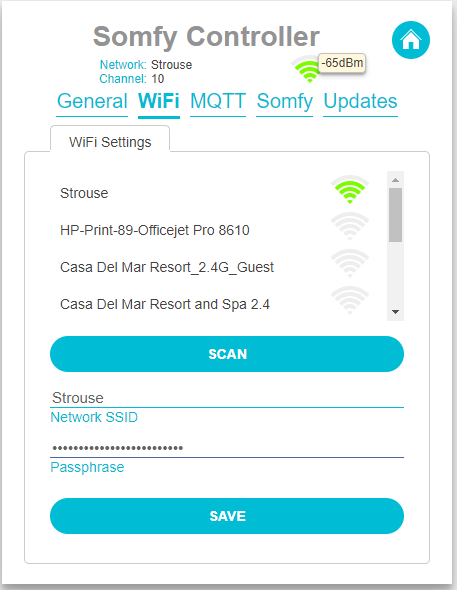

When the software is first connected it will start its own ESPSomfy RTS wifi network. You will need to connect to this network so you provide the WiFi credentials for your network. So open your WiFi networks and connect to the unsecured network named ESPSomfy RTS. Once connected navigate to http://192.168.4.1 and it will bring up the blank shades screen. Click on the gear icon at the upper right to open the configuration screen and select the WiFi tab.

Select your WiFi network from the list, enter the passphrase and hit save. This will disconnect the ESP32 from its own network and connect it to your WiFi network. From here on out you can access it by navigating to http://ESPSomfyRTS.local on your local WiFi network. That is until you change the host name and it will then start to use http://<your hostname>.local. This allows you to have several ESPSomfy RTS modules on your network at the same time each with thier own name. You probably only need this if you have more than 32 shades to control or the radio is encased in Kryptonite, or it is located on another planet, or has a magic spell of protection on it. It should also show up in your Windows networking list as the module has SSDP and mDNS built in. This is here so I can use discovery on Home Assistant later but it is nice to just see it in Windows Explorer.

General Settings

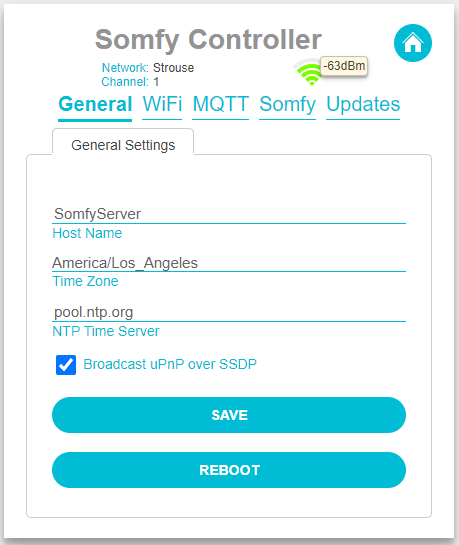

Once you have connected to your local network you can now configure the rest of the software. The first thing you should do is set up the general tab for your controller. There are a few options here for the server. This includes the host name of your Somfy server as well as the time zone and whether the server should announce iself over Universal Plug & Play. If you have isolated the device on your network you can choose a timeserver that is local to your network. This will ensure time logs are in sync.

Somfy Transceiver Settings

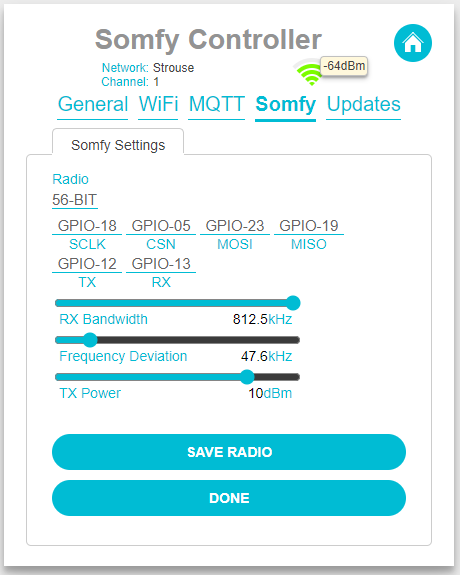

There are two parts of your shade setup that need to be configured. The first is to set up the transceiver so that it can speak with your somfy remotes and shades. You will find the transceiver settings under the configuration (gears menu) on the Somfy Tab. You should only need to configure the transceiver once but it is important that the settings are correct.

First select the radio type. This software supports either the 56-BIT Somfy remotes or the 80-BIT Somfy remotes. It will not support both at the same time so maybe here is another reason for more than one ESPSomfy RTS module. Maybe at some point I will figure out a way to support both protocols at the same time but for now spen another 12 bucks and build another device if you need both. If you do not know which radio type you have select 56-BIT for now. If we cannot hear your existing remotes in a later step you can come back and change it.

I don't have any 80-bit devices so I hope I got the timing right. If you know you have 80-bit devices and it doesn't see your remotes then let me know and we can make the protocol adjustments.

While you were hooking up your hardware above you selected the ESP32 gpio pins that are to be used for the transceiver. You simply need to match these with the pins you selected. It will default to the configuration outlined above so at this point make sure your connections are correct. It will save you from denting a wall with your forehead.

There are some radio configuration options supplied as well. These determine how well the software can hear your remotes and how loud it will speak when talking to your motors. The RX Bandwidth and Frequency Deviation focus on the receiving side of the transceiver. RX Bandwidth refers to how big the transceiver's ear is and the Frequency Deviation refers to how much noise it can filter out. Unless you are having issues with competing signals or you want to reduce the range then leave these at 812.5kHz and 47.6kHz respectively. If you are a radio head and not just somebody who has listened to the band on occasion then these settings sould be familiar. The base frequency for the radio is already tuned to 433.42mHz carrier frequency.

The TX Power determines how loud the transceiver shouts at the motors. You can leave this at 12dBm unless your transceiver is one of the ones that only support 10dBm. Either way this range is much further than the typical somfy remote.

Once you are satisfied with your settings press the Save Radio button then press done. We can now set up our shades.

Somfy Shades

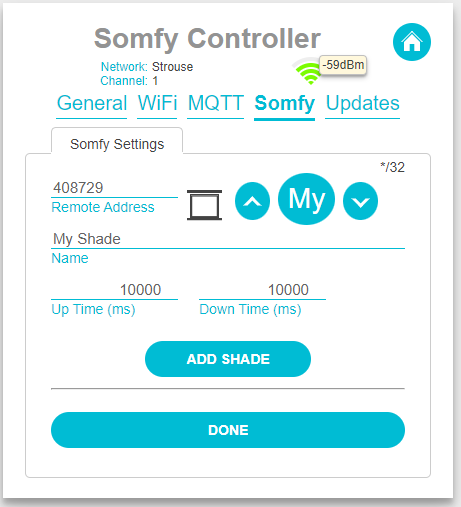

To add a shade click the Add Shade button on the Somfy Tab under the configuration menu. This will bring up a screen that allows you to set the configuration for the shade. The software supports up to 32 shades each with up to 5 linked remotes. If you need more than that you can modify the SOMFY_MAX_SHADES and/or the SOMFY_MAX_LINKED_REMOTES defines in the Somfy.h file or stop being so cheap and spend another 12 bucks for a second ESPSomfy RTS module.

At this point it is probably beneficial to provide a little bit of a glossary.

• Shade - The physical Somfy motor that drives the covering.
• Remote - A physical device such as a Telis channel that is used to control the said motor. Keep in mind a Telis 4 is actually 5 remotes but who's counting.
• Linked Remote - A remote that is used to control a particular shade and the ESPSomfy RTS module knows about. ESPSomfy RTS needs to know about these so that if a button is pressed on an external remote it knows what the current position is of the shade.
• Pairing - The process of linking the defined shade in this software so it can control the shade.

You must provide up to 20 characters for the name of the shade. The Remote Address is expected to be unique for all known addresses and the default is generated from the MAC address of your ESP32. This can be any value so long as it is unique. Change it at will but did I mention that it must be unique and the algortithm to calculate a new address only makes sure the address is unique among all the addresses that the ESPSomfy RTS module already knows about.

Remote addresses are 24-bits long and are assigned at the factory. So unless you have very old remotes you can probably safely assign these to some lower number if you want. Did I mention that these need to be unique for all controller channels and remotes within earshot of the ESPSomfy RTS module.

The Up Time and Down Time fields are the number of milliseconds it takes for the shade to travel from the down position to the up position and vice versa. This value is provided in milliseconds so if you are counting the number of seconds it takes 10 seconds = 10000 milliseconds. So if it takes 9.5 seconds to go from full down to full up then that would be 9500 milliseconds. Keep in mind the up time and the down time can be different depending on the weight of the fabric and you can make adjustments these values at any time in the future. You will find this to be remarkably precise and always in sync if you set this up correctly.

Once you are satisfied with your settings press the Add Shade button. This will change the screen to include more button functions.

• Save Shade - Saves the current settings for the shade
• Pair Shade - Allows you to pair the shade with the somfy motor
• Link Remote - Links the channel on your Somfy remote to the shade. This ensures the position of the shade can be known at all times. You can link up to 5 channels to each shade. Beyond that you probably need to simplify your life because you have remotes strewn everywhere. Honestly you should get checked.

Pairing Your Shade

In order to control your shade motor you will first need to pair it with the motor. To do this navigate to the shade editor under the config menus by clicking on the Somfy tab. A listing of all the shades you have defined will be listed on this tab. On left side of the shade in the list there will be an edit pencil. You guessed it you should click on it to bring up the shade editor window. If you just added the shade and pressed the Add Shade button you should already be here.

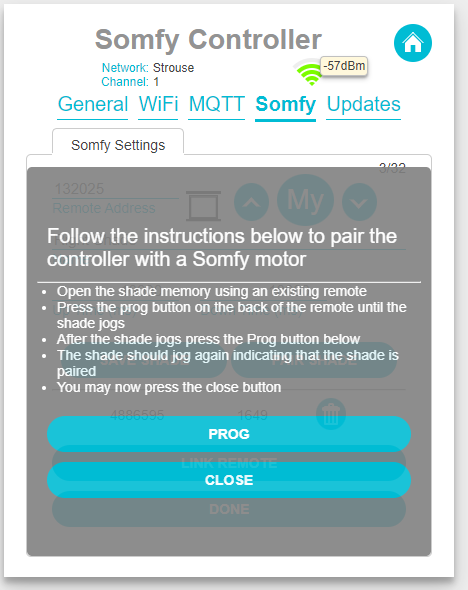

Click the Pair Shade button to bring up the pairing screen. This will contain instructions on how to put the motor into pairing mode so you can proceed. After the motor jogs press the Prog button on the paring screen and the motor should once again jog to tell you it was successful. There is no communication from the motor to the remotes so I am relying on you to verify that the motor jogged after pressing the Prog button. If it didn't then don't say it did. You will have to go through the unpairing process if you aren't honest about it and try again.

The pairing and unpairing process is essentially the same but in either instance Somfy does not provide any digital reponse that the pairing unpairing was successful. The only response is a visual one from the shade when it jogs. So it the shade does not jog after sending the response simply perform the unpair process without putting the shade into paring mode with the external remote and try again. If you followed the procedure correctly this will just work. The range for the Somfy Controller is reallly really far... over the hill and through the dell. Did I mention that I am impressed with the range?

Linking Remotes

Once you have paired the shades it is time to link the other remotes you use to open and close the shades. This linking process makes sure we capture every movement of the shade so that its position is always accurately reported. Now that you have been through the pairing process and saw how painless that was, click the Link Remote button to bring up the linking window.

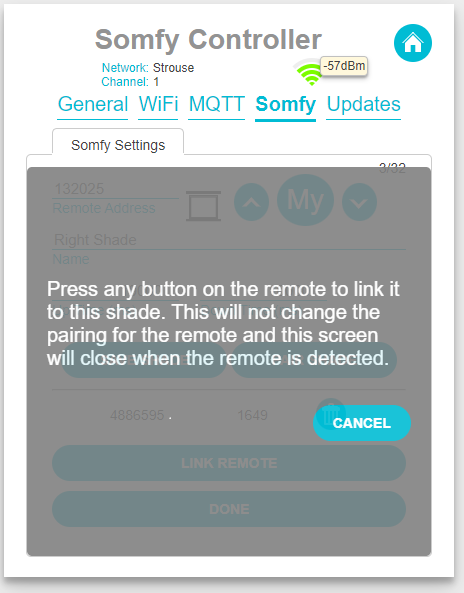

When this screen is open the controller is listening for any remote out there that is sending a command to the shade. Simply press any button on the remote you want to link. If you are having trouble deciding which button to press, press the up button. Once the remote is detected it will automatically close the link remote window as soon as it hears the remote.

Next Steps

While the interface that comes with the ESPSomfy RTS is a huge improvement, the whole idea of this project is to make the shades controllable from everywhere that I want to control them. So for that I created a couple of interfaces that you can use to bolt on your own automation. These options are for those people that have a propeller on their hat. They do things make red nodes (using Node-Red) or have their own web interface.

My first order of business is to create a packaged Home Assistant integration using the underlying socket layer for you folks that don't make red nodes. Yep it has sockets too. I will get around to documenting these as time permits.

Rest Commands

There is also a Rest interface built into the software for controlling the shades. This is also used by the UI to configure the shades but the most interesting command is the sendShadeCommand endpoint. There is also a configuration set but that is something for another day. Look at the code if you want information on how to tweak the module, shade, radio, network, or MQTT configuration.

But for shade control this couldn't be easier and can be executed using GET, POST, or PUT http methods.

For the command parameter you can use any of the following. ESPSomfy RTS will convert these into the proper radio transmission for you.

• U, UP, or up
• D, DOWN, or down
• P, Prog, or prog
• M, My, or my
• My+Up, or mu
• My+Down or md
• Up+Down or ud

When using any of the HTTP methods you can supply the command parameter on the url as follows. The shade Id is displayed on the upper right corner of the Edit Shade screen.

To send the shade in any direction: /sendShadeCommand?shadeId=1&command=up

To set the shade percentage to 35% closed: /sendShadeCommand?shadeId=1&target=35

If you use the PUT or POST http methods you can use a JSON object on the body. For instance:

{
  "shadeId":1,
  "command":"up"
}

MQTT

There is also an MQTT command and reporting interface. To enable your broker connect it in the configuration pages under MQTT. This will begin reporting the shade status to your broker under the topic you assigned.

To move the shade up, down, or stop set the /{shadeId}/directon/set topic to -1 for up 0 for stop or 1 for down. This will begin moving the shade in the specified direction or stop the shade if you set it to 0. To move the shade to a position simply set the topic /{shadeId}/target/set to the percentage closed that you would like. Where 0 equals fully open and 100 equals fully closed.

Now that this part of the controller is complete, I will be creating an integration to Home Assistant that uses the aforementioned socket/Rest interface.

Sources for this Project

I spent some time reading about a myriad of topics but in the end the primary source for this project comes from https://pushstack.wordpress.com/somfy-rts-protocol/. The work done on pushstack regarding the protocol timing made this feasible without burning a bunch of time measuring pulses.

Configuration of the Transceiver is done with the ELECHOUSE_CC1101 library which you will need to include in your project should you want to compile the code. The one used for compiling this module can be found here. https://github.com/LSatan/SmartRC-CC1101-Driver-Lib
